Project Tyrian

Porsche 911 Carrera 4S (993) · Arena Red · Singapore Edition, 9 of 10 · In build

An air-cooled 993 Carrera 4S in Arena Red — car nine of the ten built for the Singapore Edition. That number is the constraint, and it was set before the brief was.

On a car this rare, the default answer to any proposed change is no. Whatever is done has to be worth doing to this example specifically, and it has to be defensible to whoever owns it in twenty years.

Almost every decision here sits under the skin — how the engine is managed, how it is mounted, how it breathes, and which worn components were worth replacing while the car was apart. That is deliberate. On a car with this provenance, the interesting judgement is about restraint.

The photographs below are the parts as they arrived, before fitting. Laying a specification out on a bench and photographing it is not vanity — it is the last point at which a wrong decision is still cheap to reverse.

An Arena Red Porsche 911 Carrera 4S of the 993 generation in a workshop, rear lid raised and engine exposed, rear quarters masked in blue film.
In the workshop, rear lid up and the quarters masked.

Engine management

A standalone engine management system is not a performance decision on its own. It is a decision about what the rest of the car is allowed to become, and it commits the project to a loom, a sensor set and a calibration. On a car of this rarity it is also a reversibility question: what can be put back, and how completely.

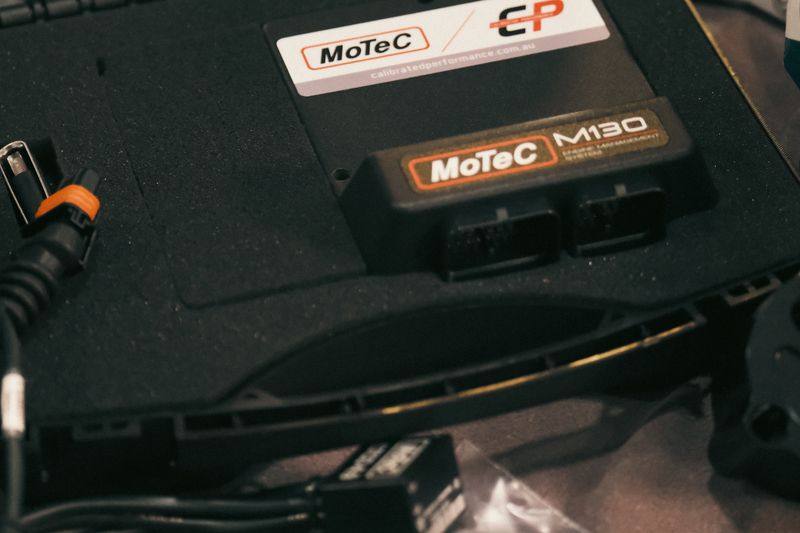

A MoTeC M130 engine control unit in its box, laid out on a dark cloth alongside the wiring loom and sensors.
A MoTeC M130 engine control unit, laid out with the loom and sensors it will run.

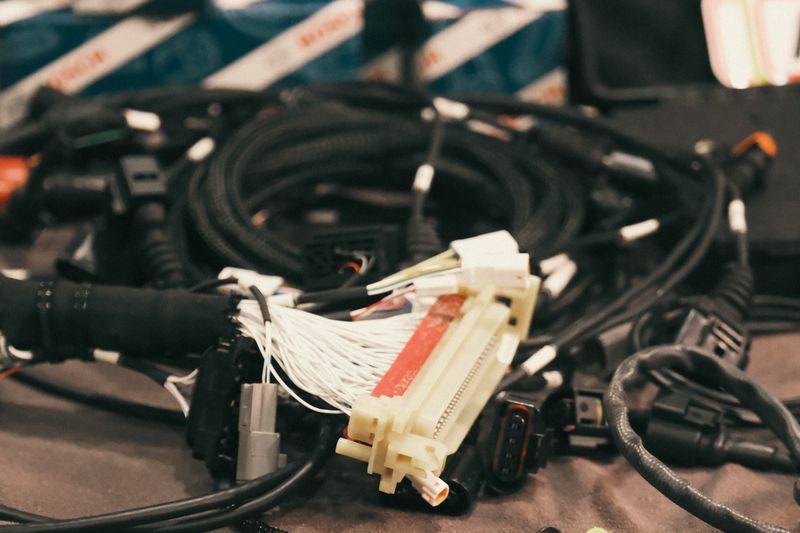

An engine wiring loom spread out, showing connector bodies and terminated wire bundles.
Engine loom and connectors, before assembly.

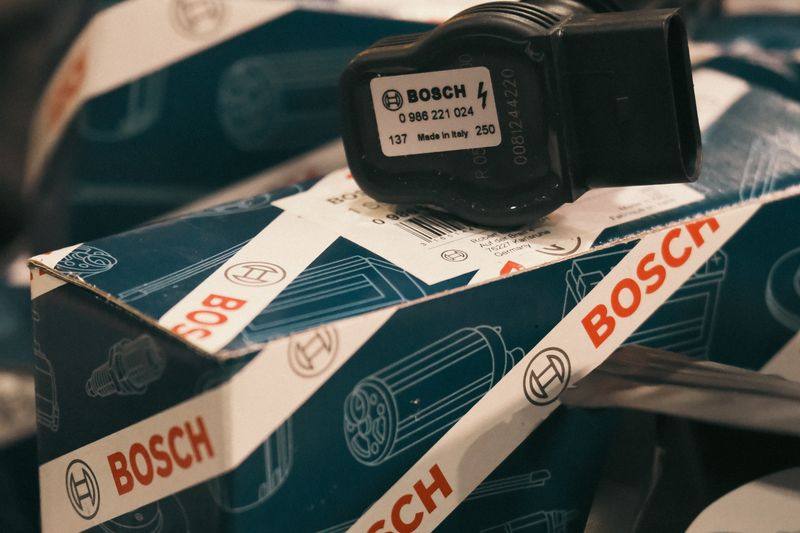

A Bosch sensor sitting on its box among other boxed components.
A Bosch sensor, among the components specified for the engine management.
A MoTeC LTC lambda controller and its cable, still in packaging.
A lambda controller and its harness. Measurement first, calibration second.

Exhaust

Everything downstream of the exhaust port changes how the engine behaves, and changes it at every point in the rev range, not just at the top.

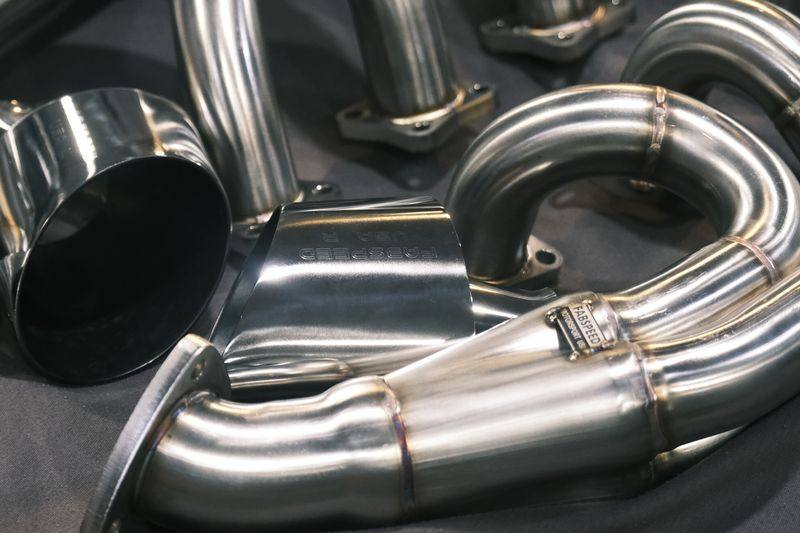

Polished stainless steel exhaust headers and collectors arranged on a dark cloth.
Stainless headers and collectors, laid out.

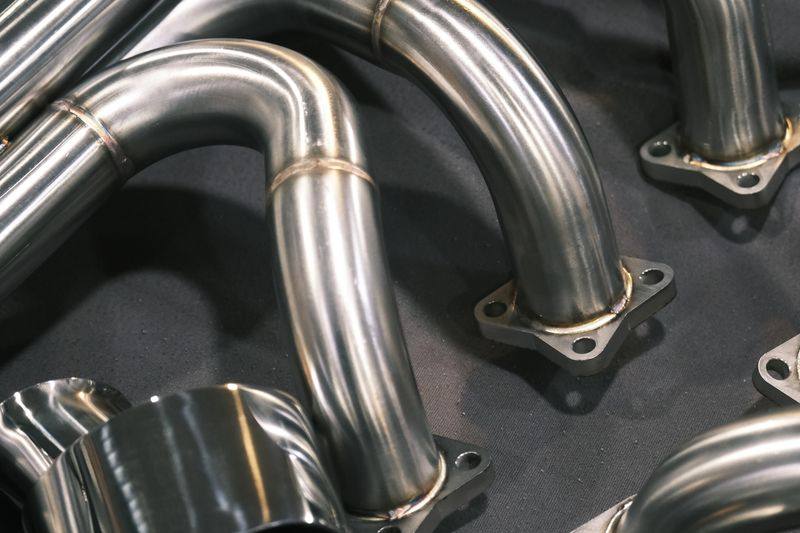

Close view of header runners meeting a flange, showing the weld and the bend radius.
Runner and flange detail. The bend radii are the point.

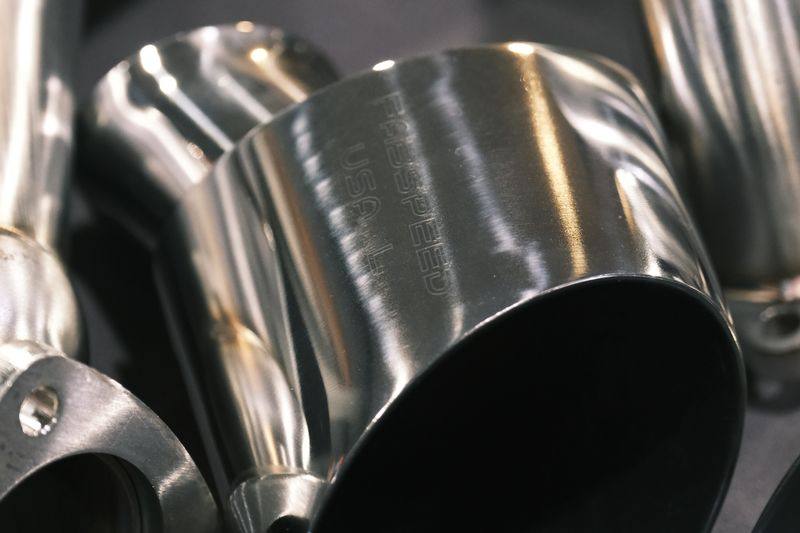

Close view into the open end of a large-diameter tailpipe.
Tailpipe detail.

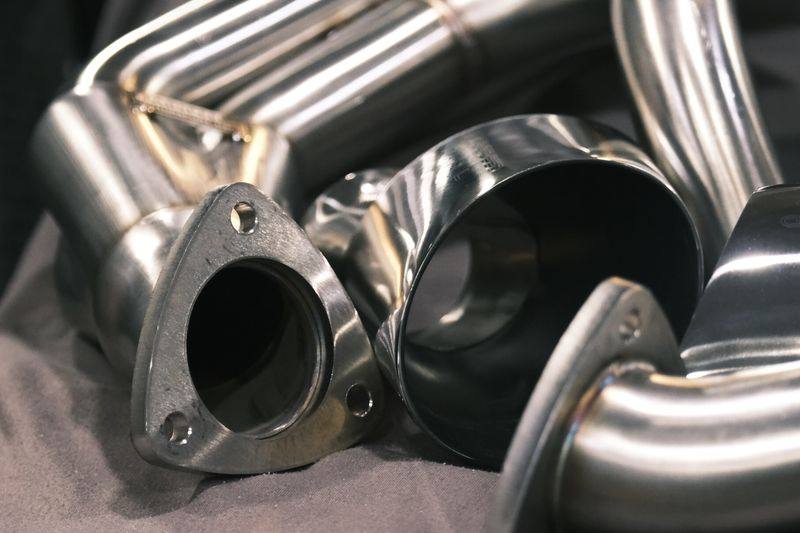

A three-bolt exhaust flange and cut pipe ends on a dark cloth.
Flange and pipe-end detail.

Mounts and driveline

Mounts are one of the few decisions an owner feels on every single drive. Firmer mounts sharpen the way a car responds and put more of the engine into the cabin. Which side of that trade a car should sit on depends entirely on what it is for.

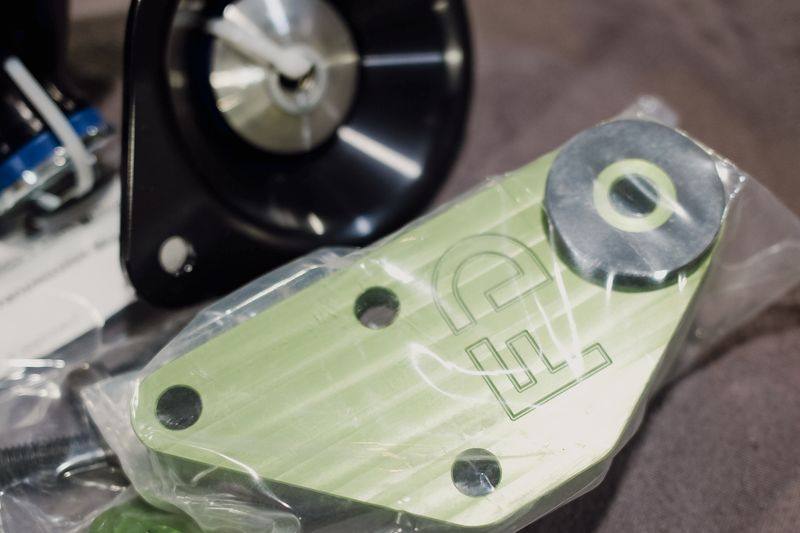

A billet engine mount with a polished centre next to a green anodised bracket in a bag.
Mounts as delivered.

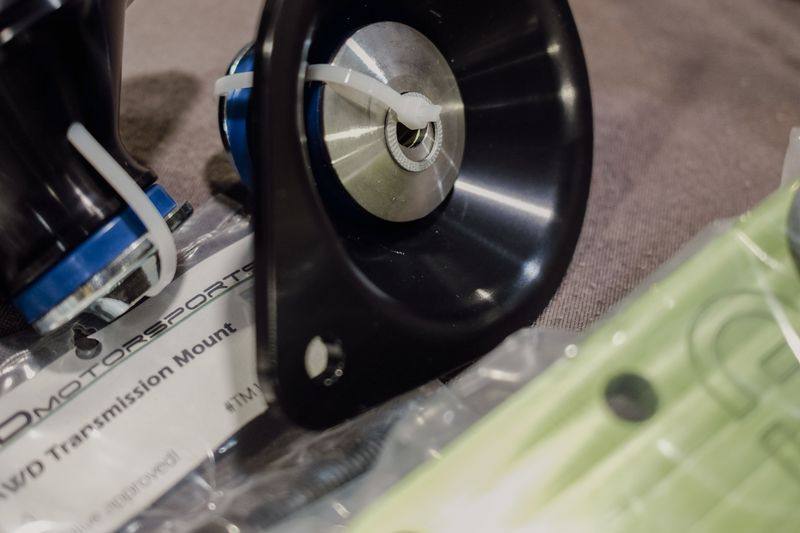

A black engine mount and a bagged transmission mount marked AWD Transmission Mount.
Engine and transmission mounts together.

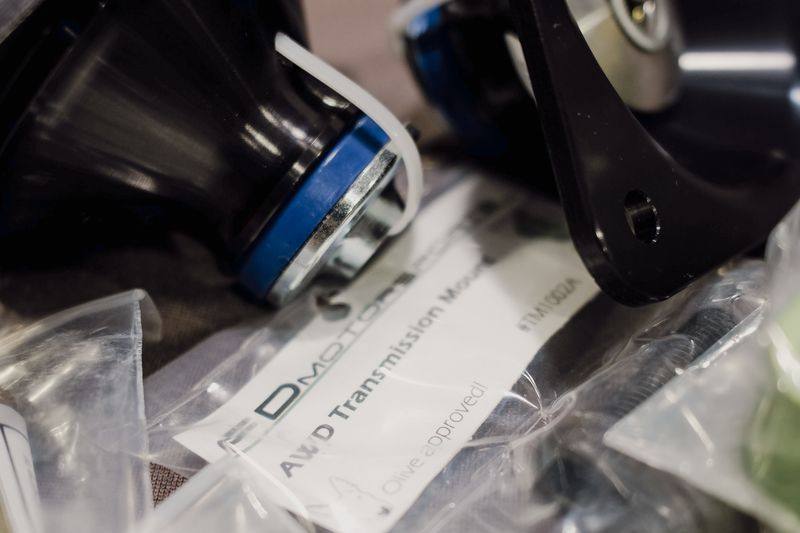

Several mounts and bagged brackets laid out on a dark cloth.
The full mount set.
A metal gear knob showing a six-speed shift pattern, R 1 3 5 over 2 4 6.
The gear knob. Six speeds.

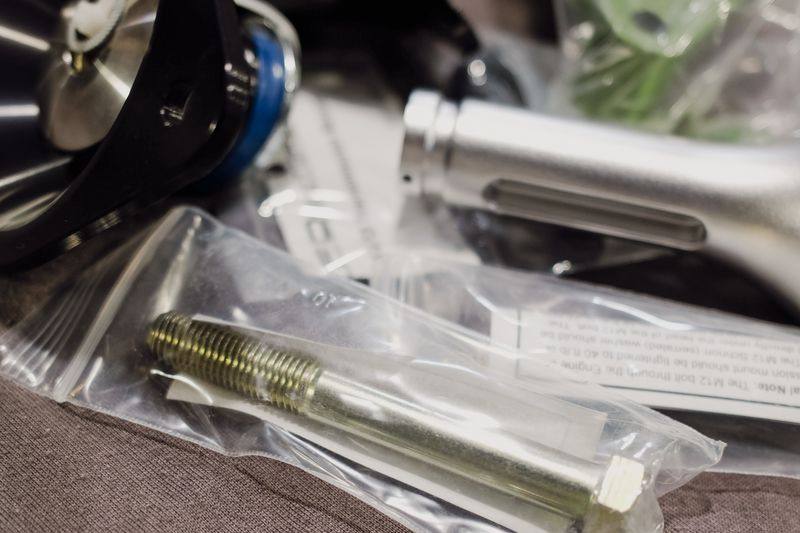

Bagged bolts, studs and a machined spacer alongside the mounts.
Hardware and spacers that go with the mounts.

Components and wear

When a car is apart, the question stops being “has this failed?” and becomes “will this outlast the cost of going back in?” Those are different questions and they produce different parts lists.

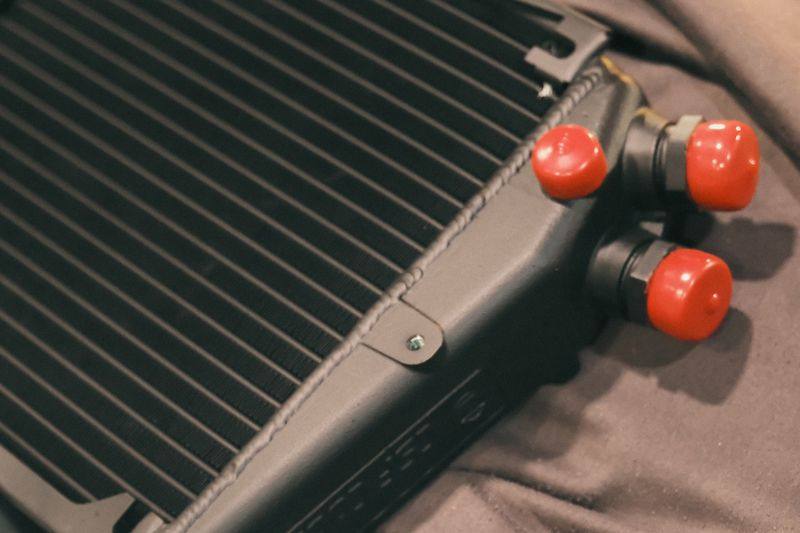

An oil cooler laid on a dark cloth among other replacement components.
An oil cooler, among the replacement components.

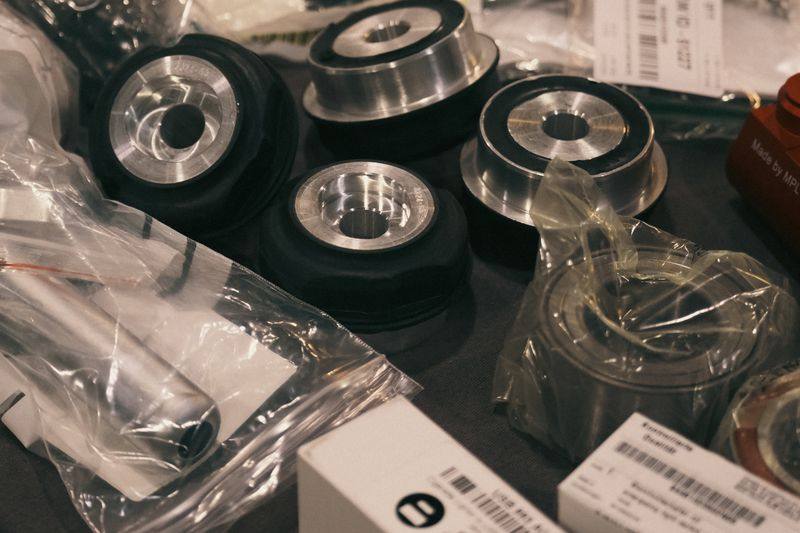

Bushes, mounts and boxed components laid out ready for fitting.
Bushes, mounts and boxed components.

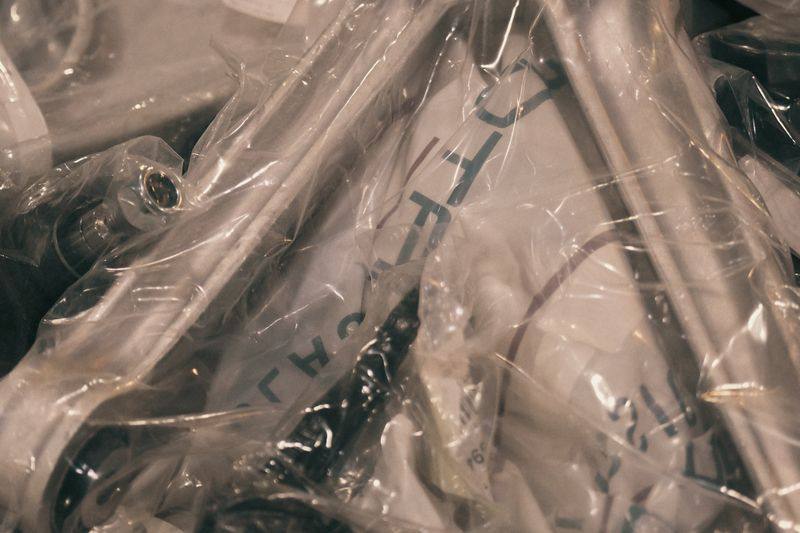

Suspension arms sealed in printed bags, laid out on a dark cloth.
Suspension arms, bagged and labelled.

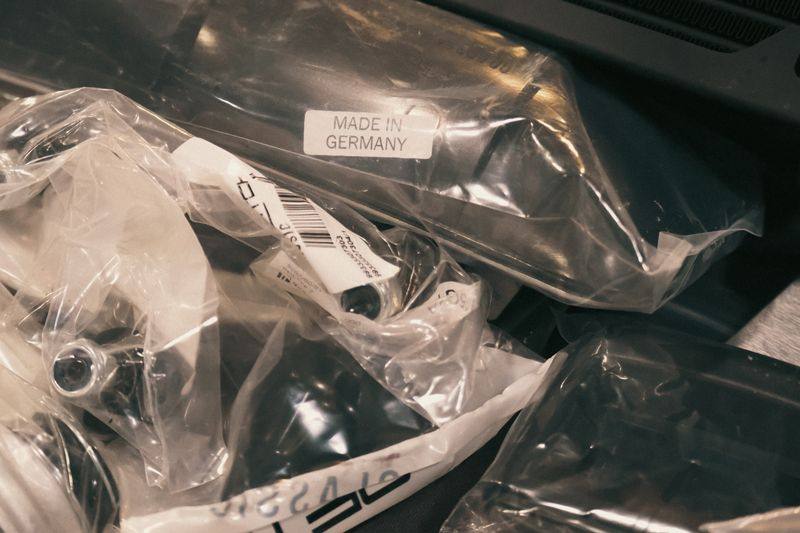

Bagged new parts, one label reading Made in Germany, with a cooler behind.
New parts, each carrying its part label.

Documentation

This project is in build. The full write-up follows on completion.

Each project is written up the same way once it is complete: the brief, the constraints, the governing idea, the key decisions by system, what was deliberately retained, the trade-offs, who executed what, and how it was validated. That needs the owner’s agreement and a proper record, so it follows the work rather than leading it.
